Components & Components Location: Component

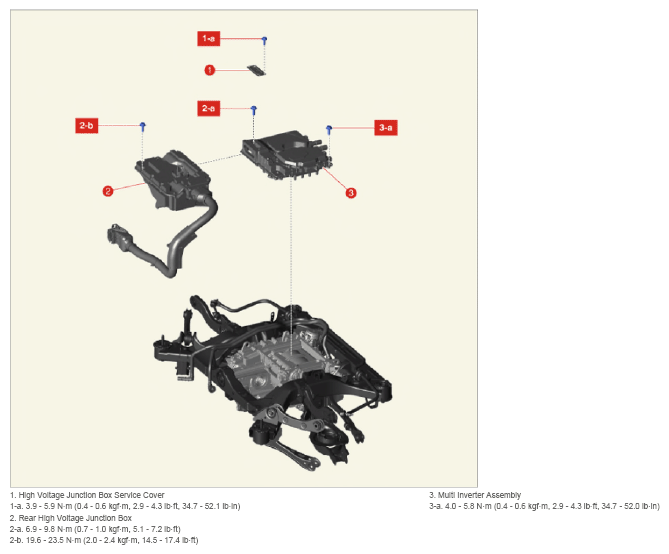

Fig 1: Multi Inverter Assembly Components Location With Torque Specification

G14862796

Courtesy of KIA MOTORS AMERICA, INC.
