Integrated Body Control Unit (IBU): Removal

1. Disconnect the battery negative (-) terminal and the service interlock connector.

   (Refer to REMOVAL & INSTALLATION - 2WD

   (Refer to REMOVAL & INSTALLATION - 4WD

2. Remove the glove box housing.

   (Refer to Body- "GLOVE BOX ")

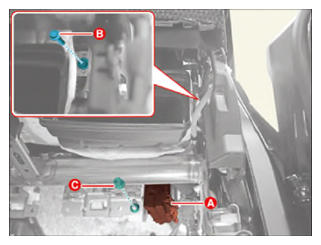

3. Remove the integrated body control unit (IBU) (A) after removing the bolt (B) and nut (C).

   Courtesy of KIA MOTORS AMERICA, INC.

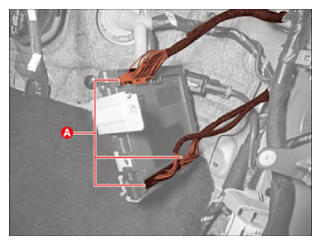

4. Disconnect the integrated body control unit (IBU) connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
