Components & Components Location: Component

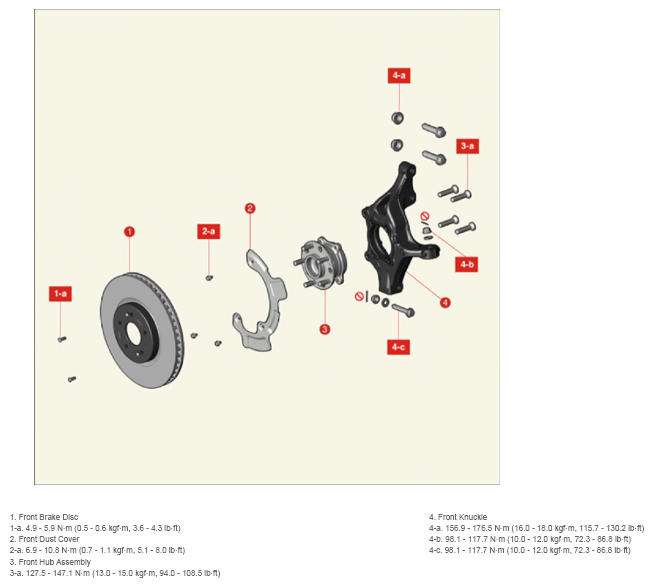

Fig 1: Front Axle Assembly Components Location With Torque Specification

G14859828

Courtesy of KIA MOTORS AMERICA, INC.
