Components & Components Location: [4WD]

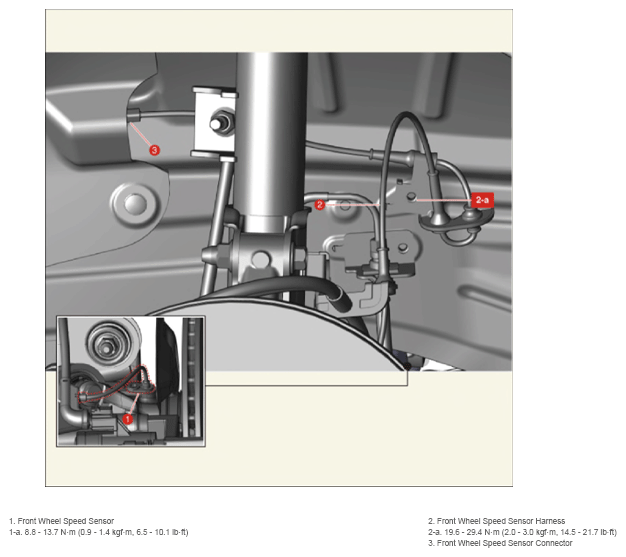

Fig 1: Front Wheel Speed Sensor Components Location With Torque Specification (4WD)
G14860739Courtesy of KIA MOTORS AMERICA, INC.
