Components & Components Location: [2WD]

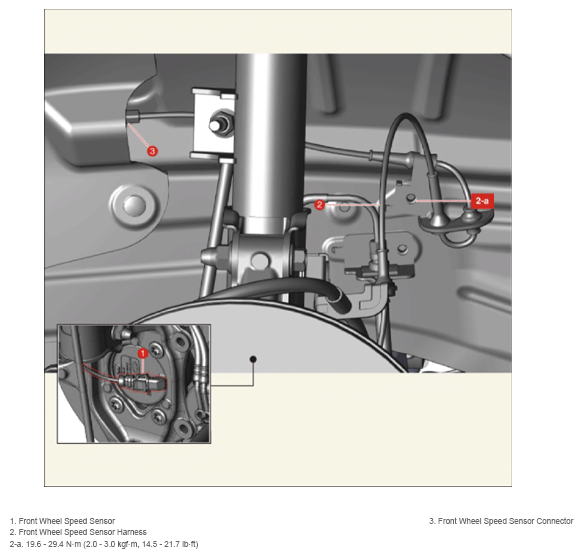

Fig 1: Front Wheel Speed Sensor Components Location With Torque Specification (2WD)
G14860738Courtesy of KIA MOTORS AMERICA, INC.
