Removal & Installation: Removal

CAUTION: Wear gloves to protect hands from injury.

NOTE:

Do not damage the glass.
Be careful not to damage the body surface.

Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the inside rear view mirror assembly.
(Refer to Mirror - "INSIDE REAR VIEW MIRROR ")
Remove the auto defogging sensor.
(Refer to AUTO DEFOGING SENSOR
Remove the front view camera unit.
(Refer to Advanced Driver Assistance System (ADAS) - "FRONT VIEW CAMERA ")
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")

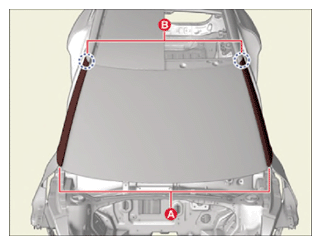

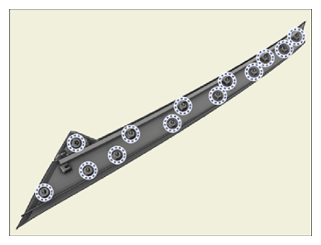

Remove the A-pillar garnish (A) from the top part (B) by using the remover.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

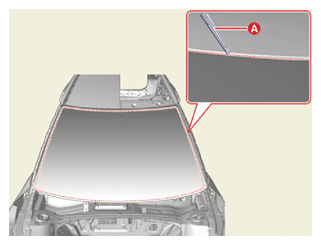

Carefully cut the windshield glass molding using a cutter knife (A).
NOTE: Use the blade of a knife with a 20 to 30 cm-long blade when using a cutter knife.

Courtesy of KIA MOTORS AMERICA, INC.

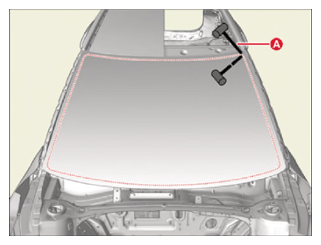

Put in a piano wire (A) to the corner side.

Courtesy of KIA MOTORS AMERICA, INC.

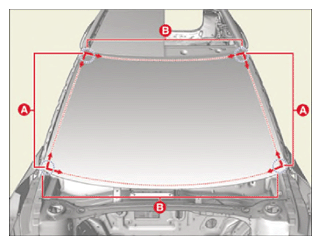

Cut off the sealant of forward edge side (B) by pulling the piano wire (A) left and right.
CAUTION:
- Wear gloves to protect hands from injury.
- Be careful not to burn the hands, as excessive heat may be generated while using the wire.
- Be careful and use caution as wire may break and cause injury.
Courtesy of KIA MOTORS AMERICA, INC.

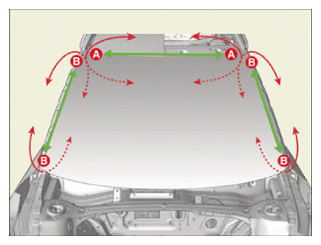

Cut off the sealant on (A-A), (B-B) area, while pulling the piano wire to the left and right.

Courtesy of KIA MOTORS AMERICA, INC.

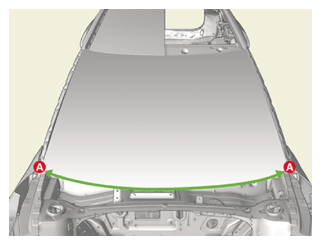

Cut off the sealant between (A-A) area by using a cutter knife.
Information

Use the blade of a knife with a 20 to 30 cm-long blade when using a cutter knife.

NOTE: Be careful when cutting the sealant as the crash pad may be damaged when working the under area (A-A). Be careful not to damage the body painting surface.

Courtesy of KIA MOTORS AMERICA, INC.

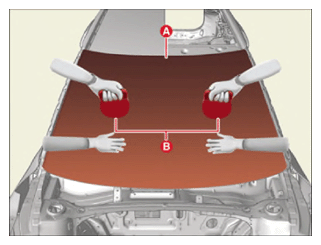

Remove the windshield glass (A) carefully using glass holder (B).

Courtesy of KIA MOTORS AMERICA, INC.
