Components & Components Location: Component

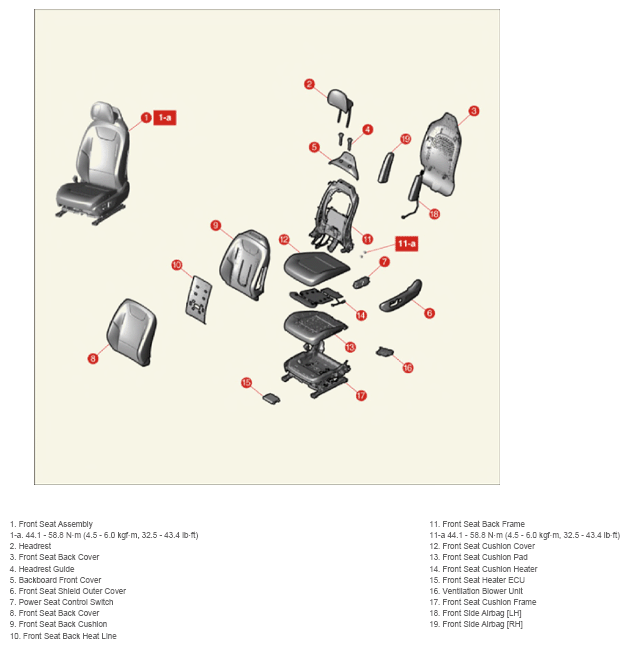

Fig 1: Front Seat Assembly Components Location With Torque Specification

G14861321

Courtesy of KIA MOTORS AMERICA, INC.
