Antenna Status Check

Information

• When checking the antenna status, it is normal if the LED of the smart key flashes, and if it does not flash, check the voltage of the battery of the smart key.

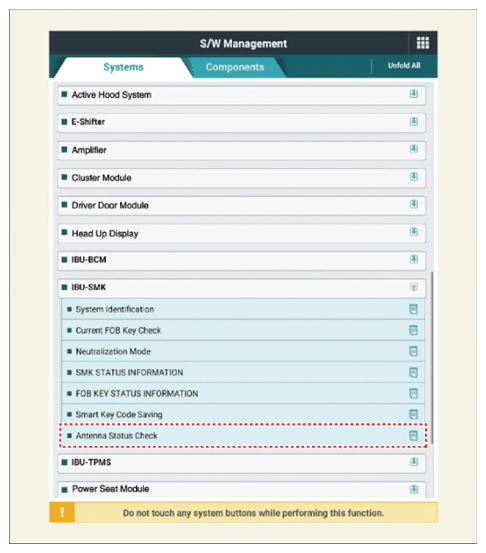

1. Select the "Antenna Status Check" on the menu by using the KDS.

   Courtesy of KIA MOTORS AMERICA, INC.

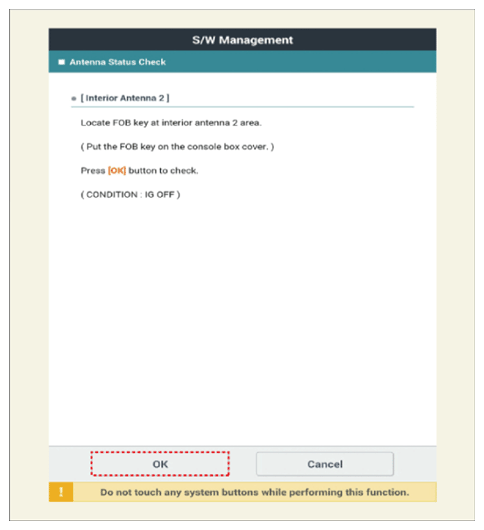

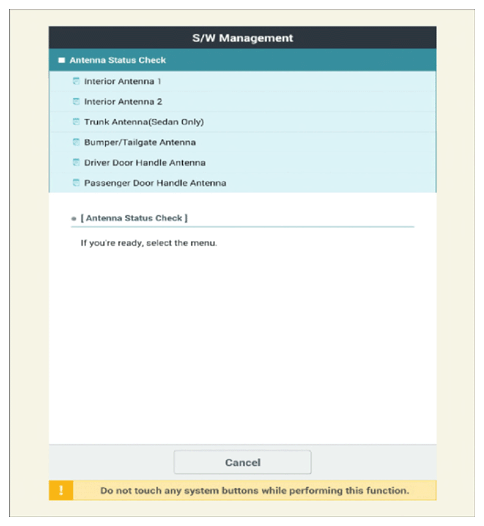

2. Set the smart key near the related antenna and operate it with KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
