Components & Components Location: Components

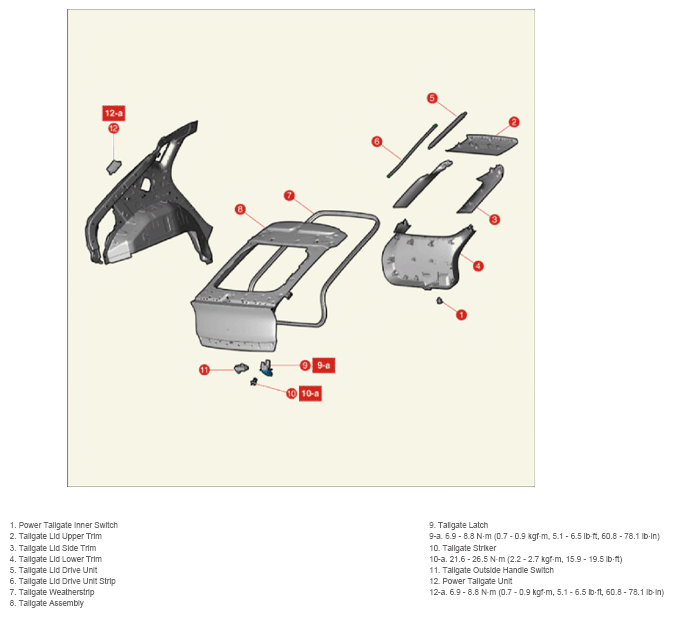

Fig 1: Power Tailgate System Components Location With Torque Specification

G14860819

Courtesy of KIA MOTORS AMERICA, INC.
