Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

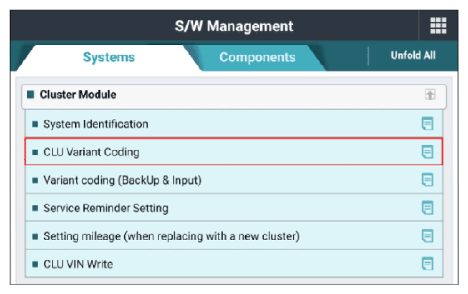

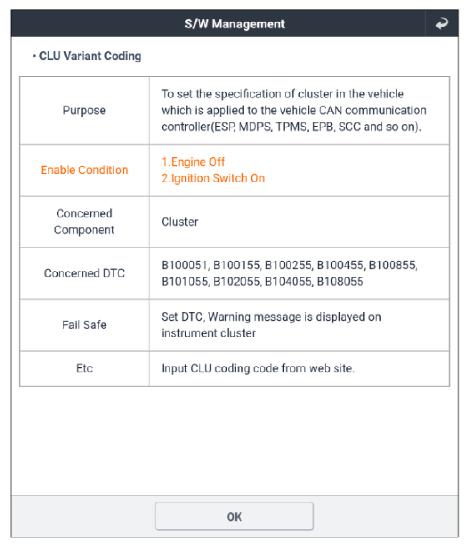

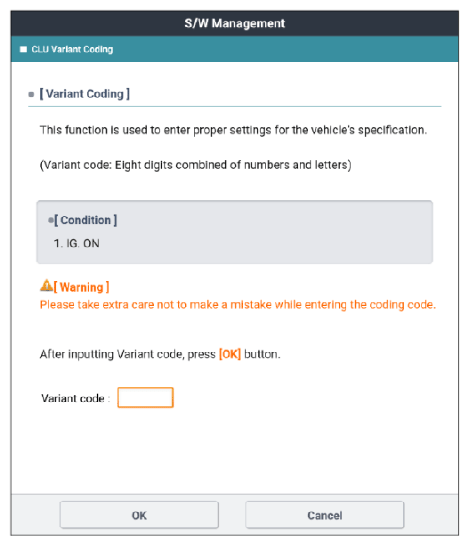

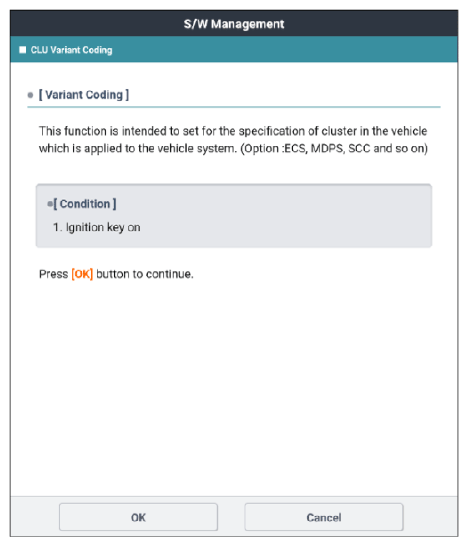

 Fig.1 to 5
G14868723Courtesy of KIA MOTORS AMERICA, INC.
G14868724Courtesy of KIA MOTORS AMERICA, INC.
G14868725Courtesy of KIA MOTORS AMERICA, INC.
G14868726Courtesy of KIA MOTORS AMERICA, INC.
G14868727Courtesy of KIA MOTORS AMERICA, INC.
