Front Radar: Removal

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to Battery Control System - "Auxiliary 12 V Battery REMOVAL & INSTALLATION - 2WD")

    (Refer to Battery Control System - "Auxiliary 12 V Battery REMOVAL & INSTALLATION - 4WD")

  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  3. Remove the front radar.

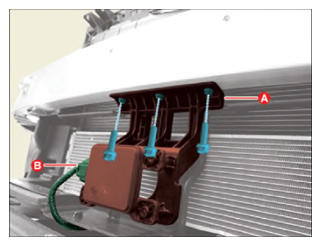

    1. Disconnect the front radar connector (B).
    2. Remove the front radar (A) after removing the bolts.
      G14862924Courtesy of KIA MOTORS AMERICA, INC.

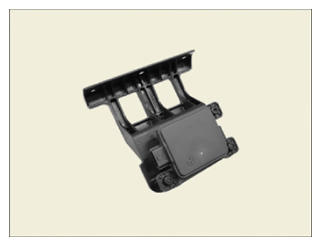

      G14862925Courtesy of KIA MOTORS AMERICA, INC.
