Front Corner Radar: Removal

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to Battery Control System - "Auxiliary 12 V Battery REMOVAL & INSTALLATION - 2WD")

    (Refer to Battery Control System - "Auxiliary 12 V Battery REMOVAL & INSTALLATION - 4WD")

  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  3. Remove the front corner radar.

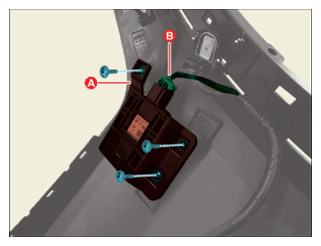

    1. Disconnect the front corner radar connector (B).
    2. Remove the front radar bracket (A) after removing the screws.
      G14862905Courtesy of KIA MOTORS AMERICA, INC.

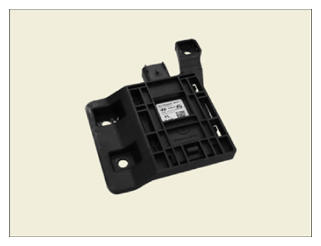

      G14862906Courtesy of KIA MOTORS AMERICA, INC.
