ADAS Driving ECU: Removal

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to Battery Control System - "Auxiliary 12 V Battery REMOVAL & INSTALLATION - 2WD")

    (Refer to Battery Control System - "Auxiliary 12 V Battery REMOVAL & INSTALLATION - 4WD")

  2. Remove the ADAS parking ECU.

    (Refer to Advanced Driver Assistance System Parking - "ADAS PARKING ECU ")

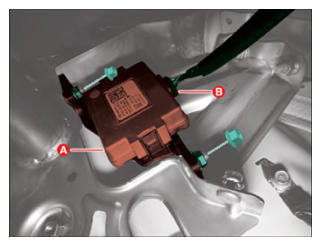

  3. Remove the ADAS driving ECU (A).

    Tightening torque:

    8.8 -10.8 N.m (0.9 -1.1 kgf.m, 6.5 - 8.0 Ib.ft)

    1. Disconnect the ADAS parking ECU connector (B).
    2. Remove the ADAS parking ECU (A) after removing the nuts.
      G14862994Courtesy of KIA MOTORS AMERICA, INC.

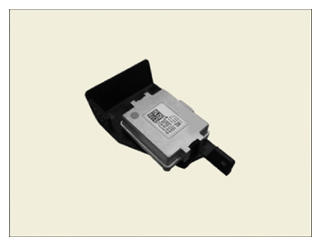

      G14862995Courtesy of KIA MOTORS AMERICA, INC.
