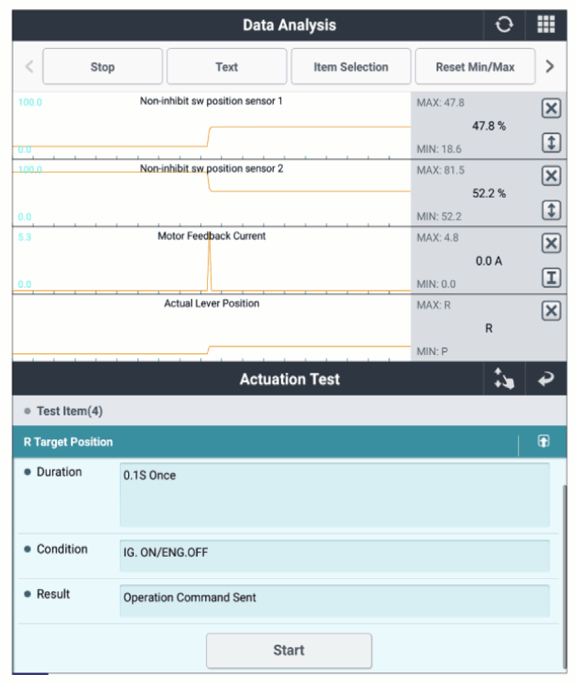

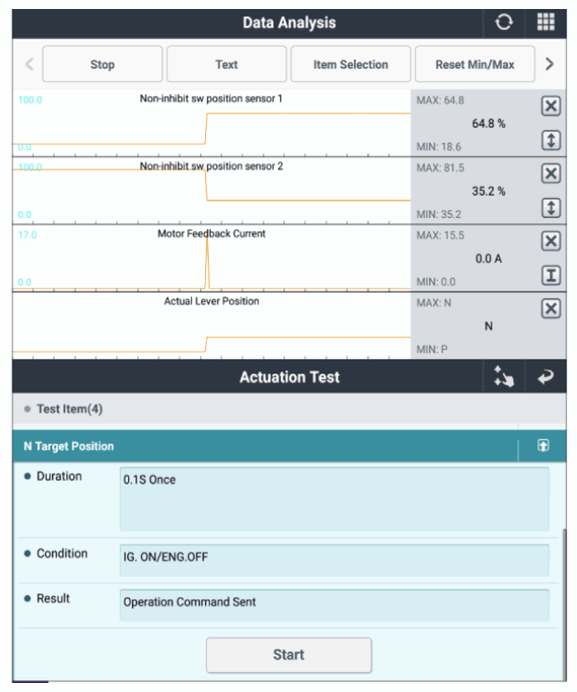

Component Inspection: Notes

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Fault is intermittent caused by poor contact in the sensor's and/or SCU's connector or was repaired and SCU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.
• If no symptoms are present but the DTC is not cleared, perform the "VERIFICATION OF REPAIR " procedure after performing the "Clear Learning Value" procedure in "Vehicle S/W Management".

No Good

• Check SBW actuator motor assembly for failure. (motor connection shaft, gear break, etc.)
• If no problems were found with the circuits or connectors, replace the SBW actuator and Go to "VERIFICATION OF REPAIR " procedure.
