Components & Components Location: Components

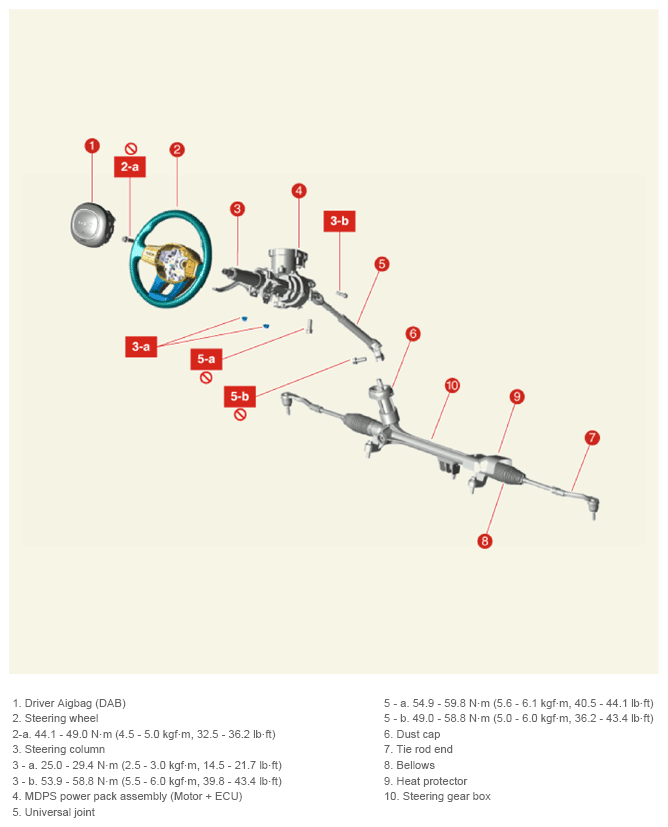

Fig 1: MDPS (Motor Driven Power Steering) System Components Location With Torque Specification

G14798161

Courtesy of KIA MOTORS AMERICA, INC.
