Stop Lamp Switch: Removal

WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative (-) terminal.
Remove the knee airbag (KAB).
Refer to KNEE AIRBAG (KAB) MODULE

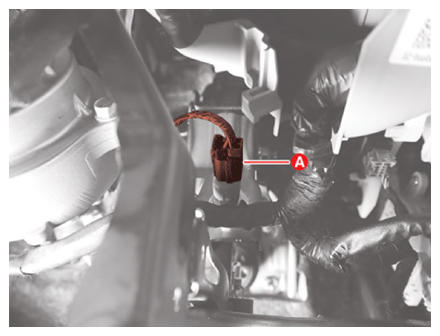

Disconnect the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

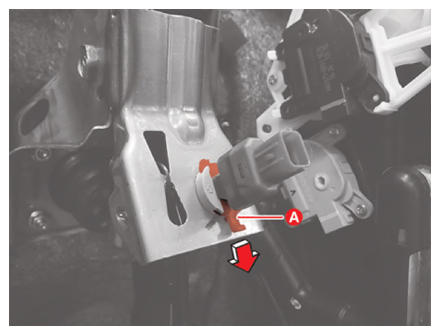

Pull the locking plate (A) as indicated by the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

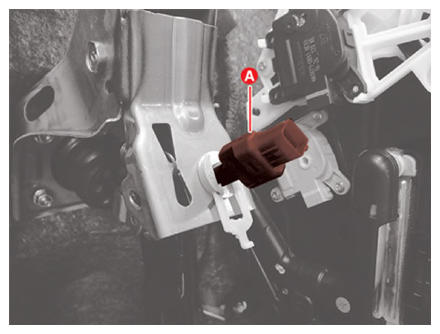

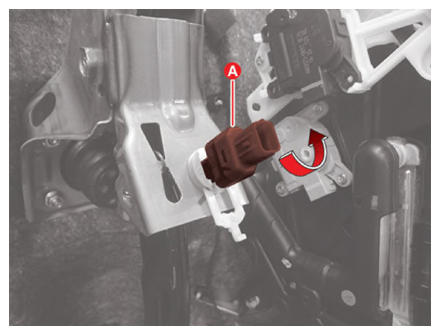

Turn stop lamp switch (A) 45° counterclockwise and remove it.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
