Stop Lamp Switch: Installation

WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.

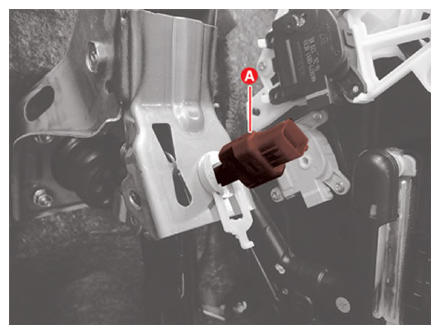

Fix the brake pedal arm and insert fully the stop lamp switch (A) as hiding contact part.

Courtesy of KIA MOTORS AMERICA, INC.

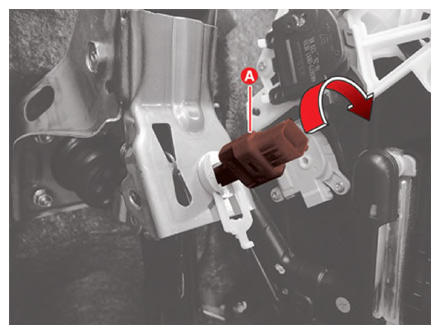

After inserting, turn the stop switch (A) 45° clockwise,

Courtesy of KIA MOTORS AMERICA, INC.

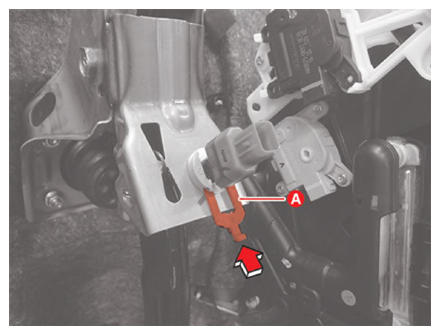

Assemble the locking plate (A) by pushing it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

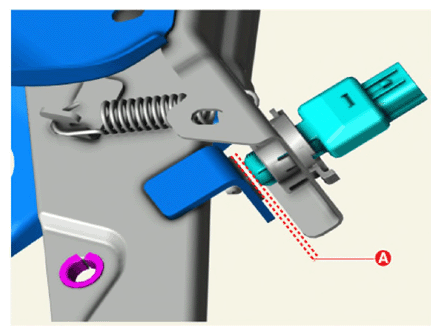

Confirm the gap (A) between stop lamp switch and bracket.
Stop lamp clearance (A): 1.0 - 2.0 mm (0.04 - 0.08 in.)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the gap (A) between stop lamp switch and bracket is not 1.0 - 2.0 mm (0.04 - 0.08 in), perform the above process again.

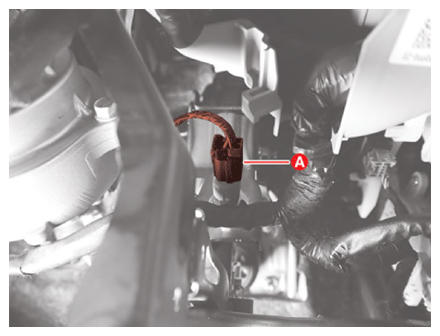

Connect the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Connect the battery negative (-) terminal.
Install the knee airbag (KAB).
Refer to knee airbag (KAB) Module INSTALLATION
