- Analyze KDS data and confirm if there is anything wrong with the stop lamp switch.
- Connect the KDS to the DLC (Data Link Connector).
- Turn the ignition ON.
- Step on the brake pedal.
- Inspect the "Brake Switch" category that displays the "Sensor Data" KDS.

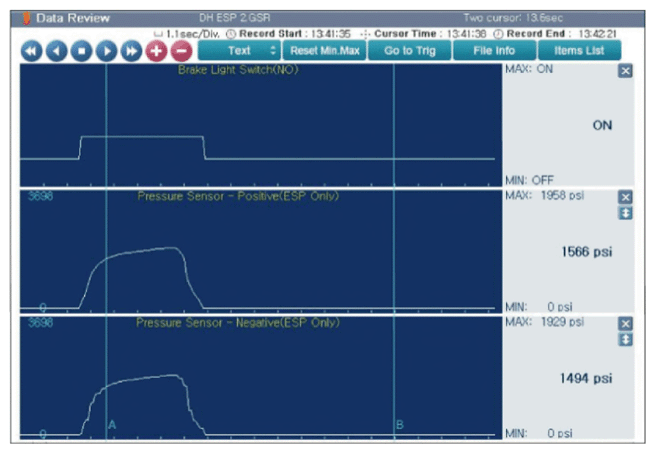

Normal waveform:
The pressure sensor signal value will change according to the brake ON/OFF switch.
