Fuse Inspection

WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.

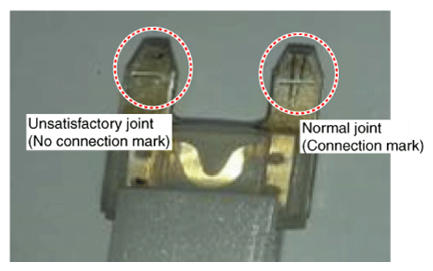

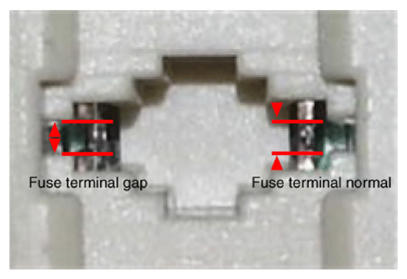

Mount the test fuse to the switch fuse and relay fuse part to confirm a normal joint fit.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
