Stop Lamp Switch: Adjustment
WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative (-) terminal.

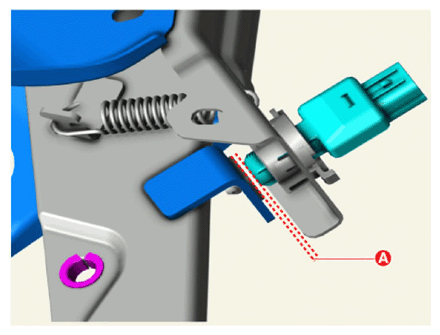

- Confirm the gap (A) between stop lamp switch and bracket.
Stop lamp switch clearance (A): 1.0 - 2.0 mm (0.04 - 0.08 in.)
- If the gap between stop lamp switch and bracket is not 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other part of around stop lamp switch.
- If is not normal, remove the stop lamp switch and then install again.
