[Clock Spring]

WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel.

    (Refer to Steering System - "REMOVAL ")

  2. Remove the steering wheel column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

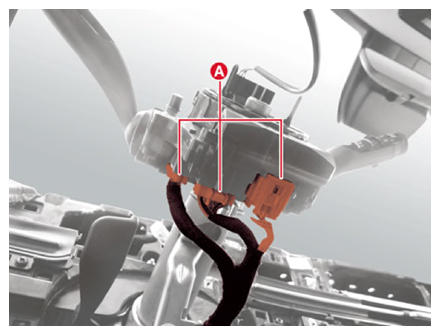

  3. Remove the multifunction switch assembly (A) after disconnecting the clock spring wiring harness and multifunction switch harness connector.
G14798292Courtesy of KIA MOTORS AMERICA, INC.
