Front Radar Unit: Removal
WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative (-) terminal.
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

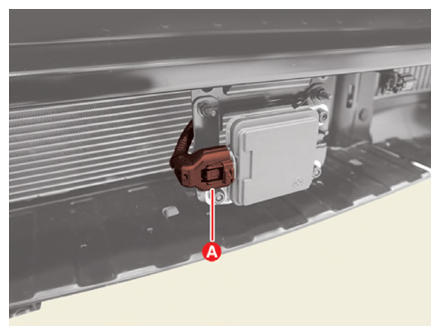

- Disconnect the front radar connector (A).

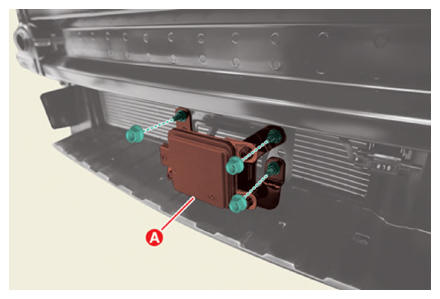

- Remove the front radar (A) after removing the mounting nuts.
