Turn Signal Lamp: Replacement
WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative (-) terminal.
- Remove the rear bumper assembly.
(Refer to Body - "REAR BUMPER ASSEMBLY ")

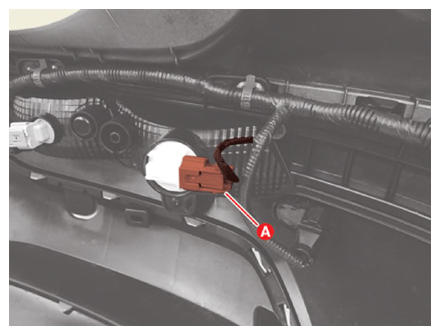

- Disconnect the turn signal connector (A).

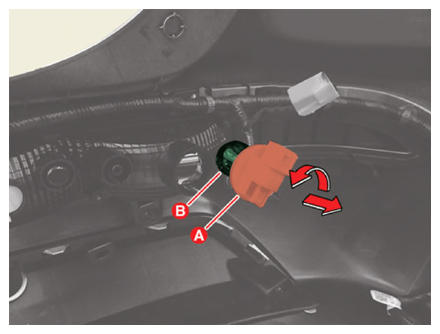

- Remove the turn signal socket (A) by turning in the counterclockwise direction and replace the turn signal bulb (B).
