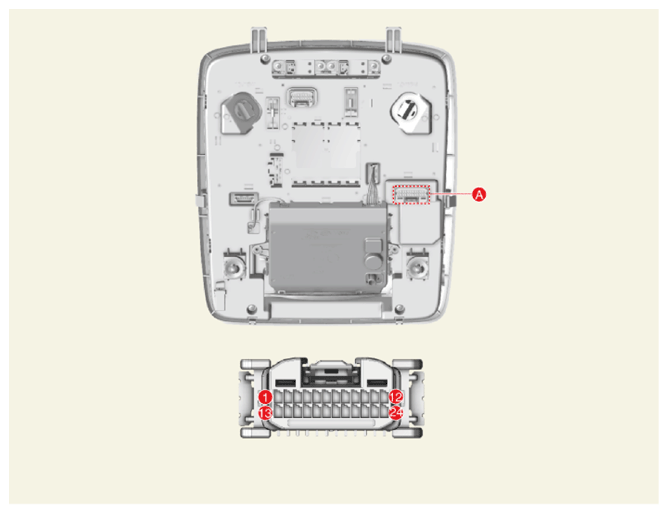

Connector & Terminal Function
WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Pin |
Function |
| 1 |
Battery (+) |
| 2 |
IGN1 |
| 3 |
Tail lamp |
| 4 |
- |
| 5 |
Room lamp (+) |
| 6 |
- |
| 7 |
- |
| 8 |
- |
| 9 |
Door (-) |
| 10 |
- |
| 11 |
Ground (Room lamp) |
| 12 |
Ground |
| 13 |
- |
| 14 |
- |
| 15 |
- |
| 16 |
- |
| 17 |
- |
| 18 |
- |
| 19 |
- |
| 20 |
- |
| 21 |
Room lamp signal |
| 22 |
- |
| 23 |
- |
| 24 |
- |
