License Lamp: Replacement

WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative (-) terminal.

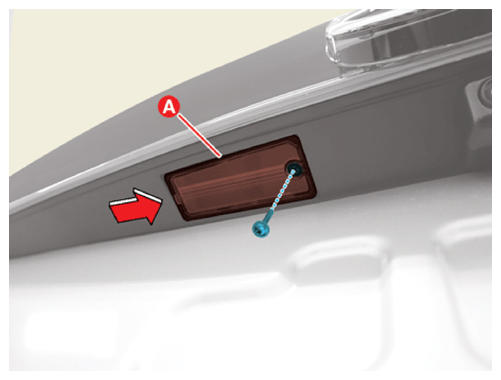

  2. Remove the license lamp (A) after pressing the hook by removing the mounting screw.
    G14806323Courtesy of KIA MOTORS AMERICA, INC.

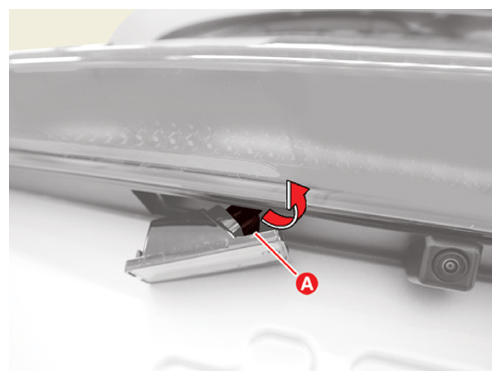

  3. Remove the license lamp socket (A) by rotating in the counterclockwise.
    G14806324Courtesy of KIA MOTORS AMERICA, INC.

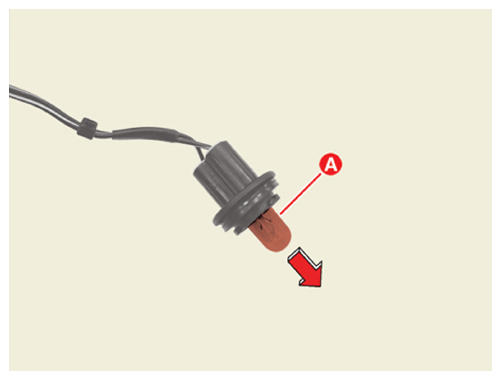

  4. Replace the license lamp bulb (A) from the socket.
    G14806325Courtesy of KIA MOTORS AMERICA, INC.
