Back-Up Lamp: Replacement: Bulb

WARNING: This page is about a different car, the 2024 Kia Carnival. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative (-) terminal.
  2. Remove the rear bumper assembly.

    (Refer to Body - "REAR BUMPER ASSEMBLY ")

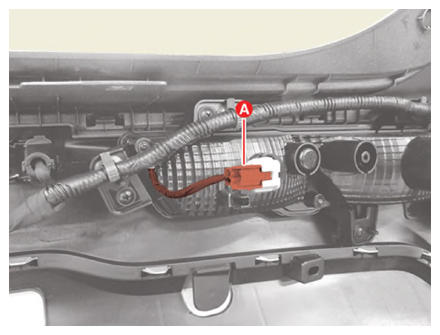

  3. Disconnect the back up lamp connector (A).
    G14806351Courtesy of KIA MOTORS AMERICA, INC.

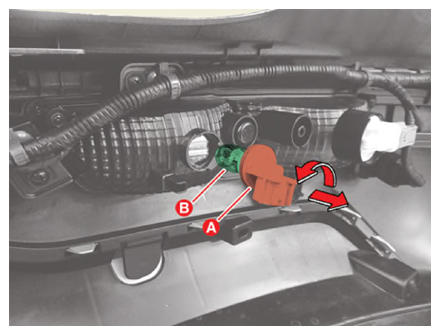

  4. Remove the back up lamp socket (A) by turning in the counterclockwise and replace the back up lamp bulb (B).
G14806352Courtesy of KIA MOTORS AMERICA, INC.
