Battery
>>
Specifications
>>

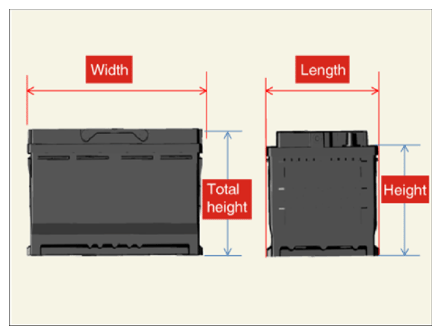

Battery size
Battery size
Capacity (5HR/20HR)
Width
Length
Height
Total height
[mm (Inch)]
64/80
312 - 314 (12.28 - 12.36)
173 - 175 (6.81 - 6.88)
164 - 168 (6.45 - 6.61)
188 - 190 (7.40 - 7.48)
