Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

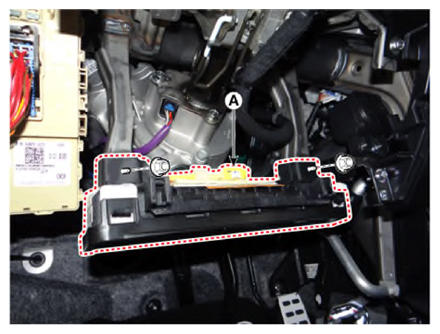

  3. Remove the knee airbag (A) after loosening the mounting nuts.

    Tightening torque:

    5.9 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.8 lbf.ft)

    G13311124Courtesy of KIA MOTORS AMERICA, INC.

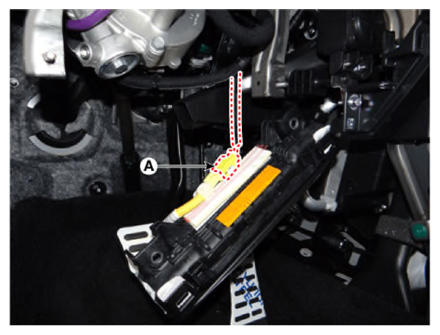

  4. Disconnect the knee airbag connector (A).
G13311125Courtesy of KIA MOTORS AMERICA, INC.
