Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
• Take care not to bend or scratch the trim and panels.

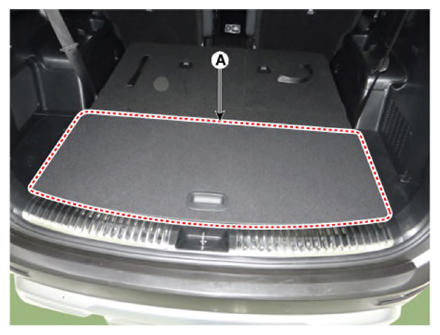

1. Remove the luggage covering board (A).

   Courtesy of KIA MOTORS AMERICA, INC.

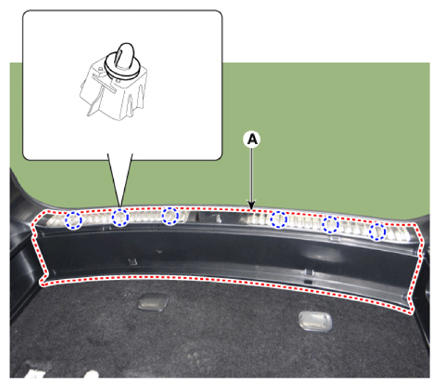

2. Using a screwdriver or remover, remove the rear transverse trim (A).

   Courtesy of KIA MOTORS AMERICA, INC.

3. To install, reverse removal procedure.

   Information

   Replace any damaged clips (or pin-type retainers).
