Repair Procedures: Replacement

Information

There are two types of drive belt layouts. Depending on the type, refer to the correct type of repair procedure.

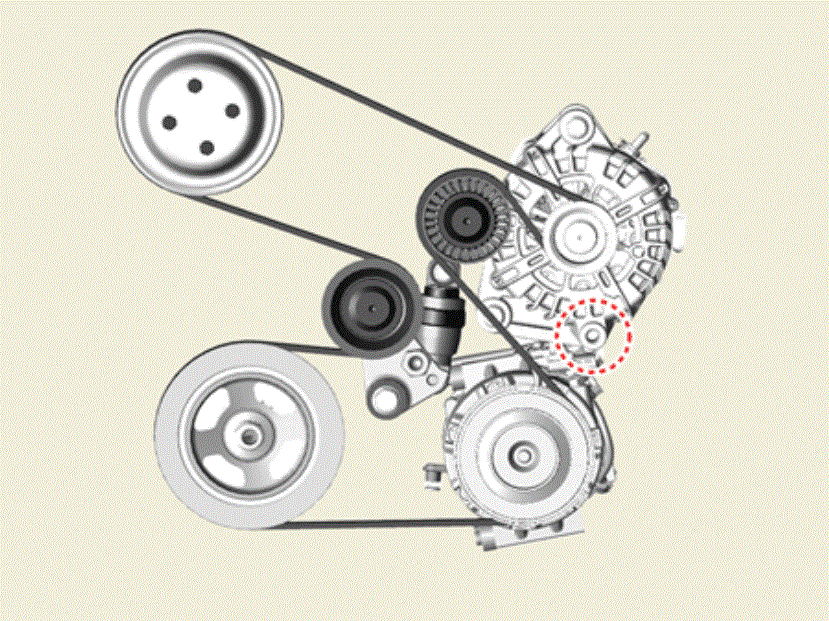

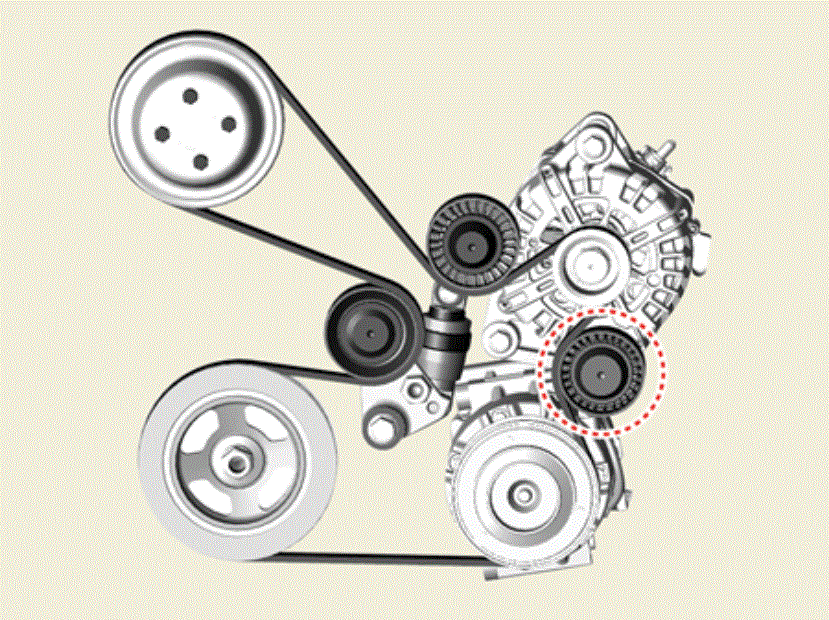

A Type	B Type
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

A Type

1. Remove the drive belt.

   (Refer to Drive Belt System - "DRIVE BELT ")

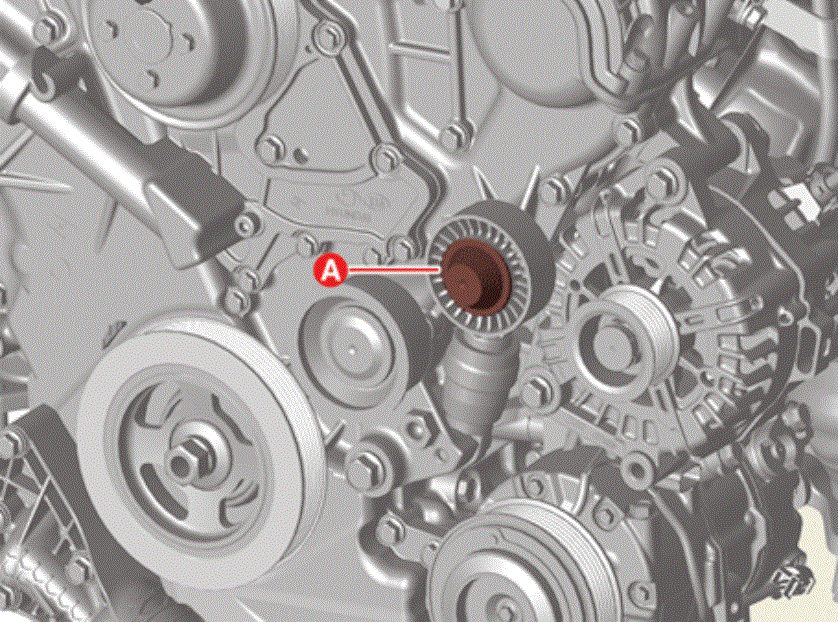

2. Remove the idler cap cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

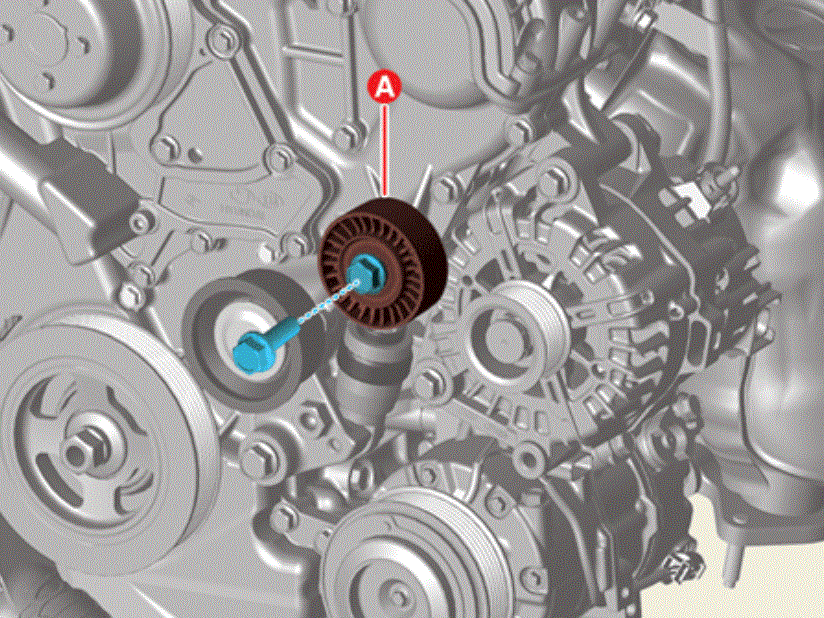

3. Remove the idler (A).

   Tightening torque:

   53.9 - 57.9 N.m (5.5 - 5.9 kgf.m, 39.8 - 42.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install in the reverse order of removal.

B Type

1. Remove the drive belt.

   (Refer to Drive Belt System - "DRIVE BELT ")

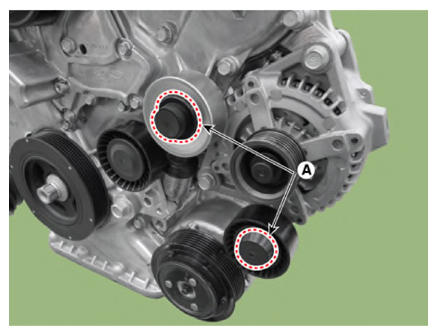

2. Remove the idler cap cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

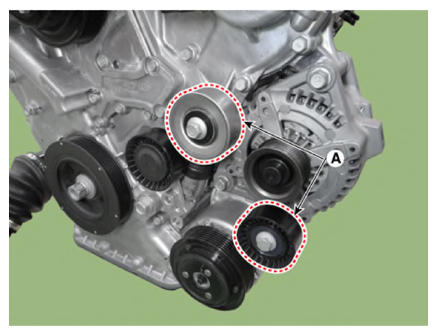

3. Remove the idler (A).

   Tightening torque:

   53.9 - 57.9 N.m (5.5 - 5.9 kgf.m, 39.8 - 42.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install in the reverse order of removal.
