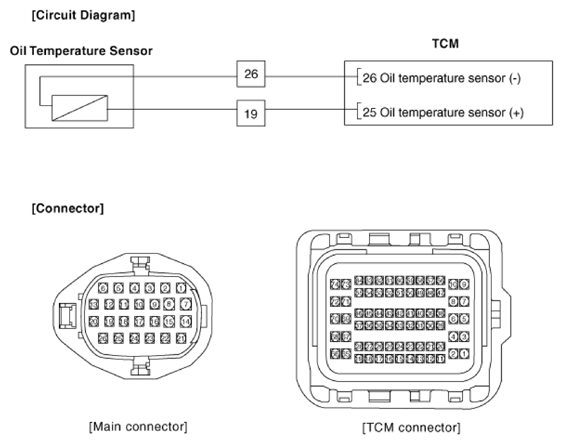

Home >> Kia >> 2021 >> Telluride S, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Oil Temperature Sensor (Main Harness) >> Schematic Diagrams >> Circuit Diagram
