Repair Procedures: Removal

  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Drain the coolant.

    (Refer to Cooling System - "COOLANT ")

  3. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

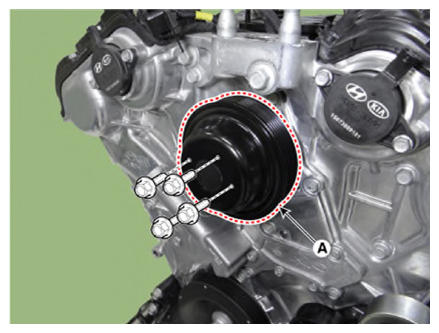

  4. Remove the water pump pulley (A).
    G13309427Courtesy of KIA MOTORS AMERICA, INC.

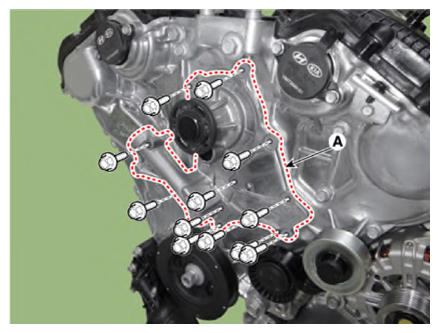

  5. Remove the water pump (A) and gaskets.
    G13309428Courtesy of KIA MOTORS AMERICA, INC.
