Removal & Installation: Disassembly

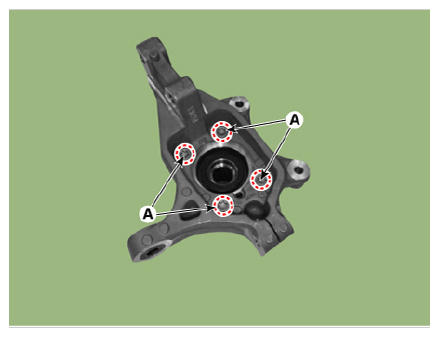

  1. Loosen the hub bearing mounting bolts (A).

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G13310688Courtesy of KIA MOTORS AMERICA, INC.

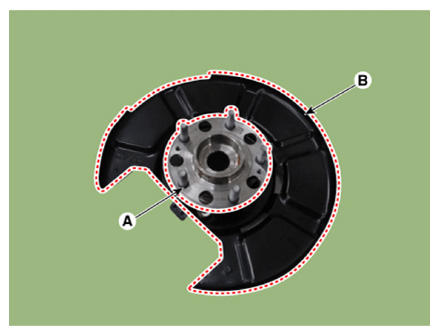

  2. Remove the hub bearing (A) and dust cover (B) from the knuckle.
    G13310689Courtesy of KIA MOTORS AMERICA, INC.
  3. Assemble in the reverse order of disassembly.
