Repair Procedures: Disassembly

NOTE:
  • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
  • The boot band should be replaced with a new one.
  1. Remove the Front Driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

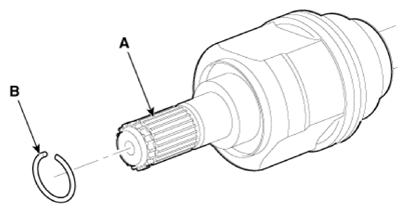

  2. Remove the housing circlip (B) from the driveshaft spline (A).
    G13310652Courtesy of KIA MOTORS AMERICA, INC.

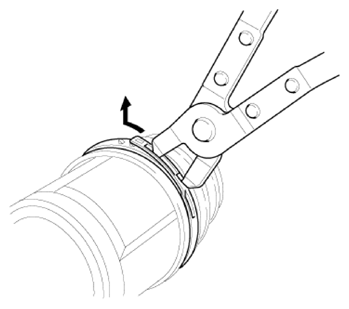

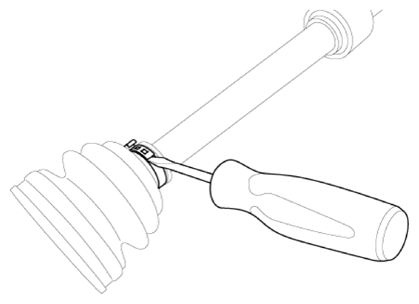

  3. Remove both boot bands from the TJ housing.
    G13310653Courtesy of KIA MOTORS AMERICA, INC.
    G13310654Courtesy of KIA MOTORS AMERICA, INC.

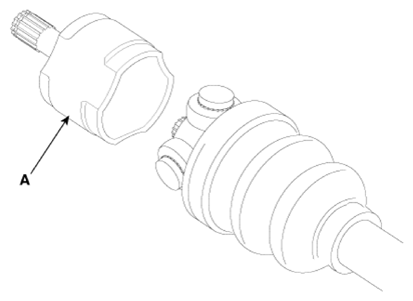

  4. Remove the TJ housing (A).
    G13310655Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

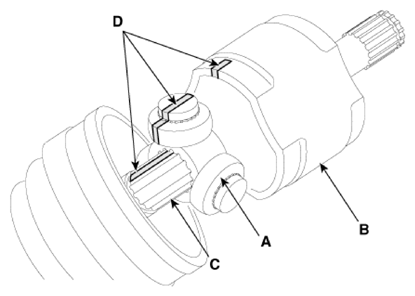

    • Make alignment marks (D) on spider roller assembly (A), TJ housing (B), and shaft spline (C) to aid reassembly.
    G13310656Courtesy of KIA MOTORS AMERICA, INC.

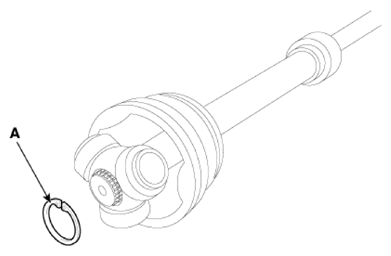

  5. Remove the snap ring (A) from the shaft.
    G13310657Courtesy of KIA MOTORS AMERICA, INC.

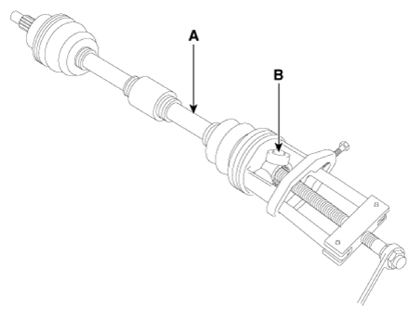

  6. Remove the spider assembly (B) from the driveshaft (A) using the puller.
    G13310658Courtesy of KIA MOTORS AMERICA, INC.
  7. Clean the spider assembly.

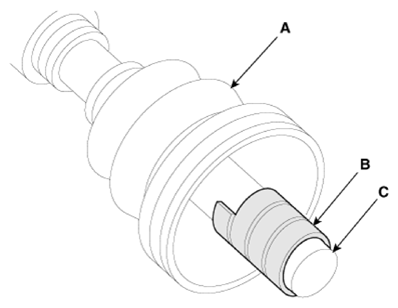

  8. Remove the TJ boot (A).
NOTE:
  • For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
G13310659Courtesy of KIA MOTORS AMERICA, INC.
