Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

When installing, place the wiper arm to the specified position and then tighten the nut.

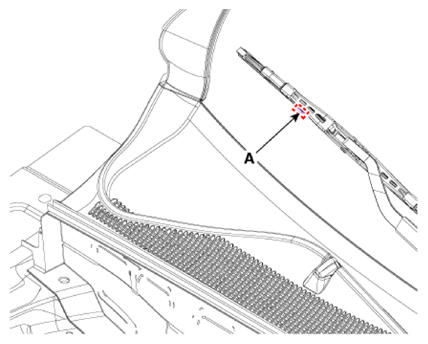

[Front wiper]

Place the passenger blade to the setting position at windshield glass clear marking (A).

Courtesy of KIA MOTORS AMERICA, INC.

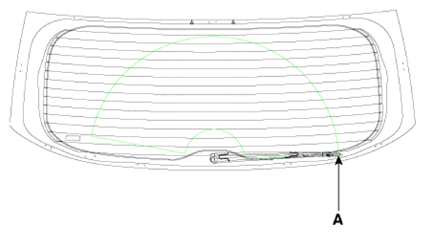

[Rear wiper]

Wiper blade to be lined up on marking (A).

Courtesy of KIA MOTORS AMERICA, INC.
