Repair Procedures: Inspection
- With the washer motor connected to the reservoir tank, fill the reservoir tank with water.NOTE: Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.

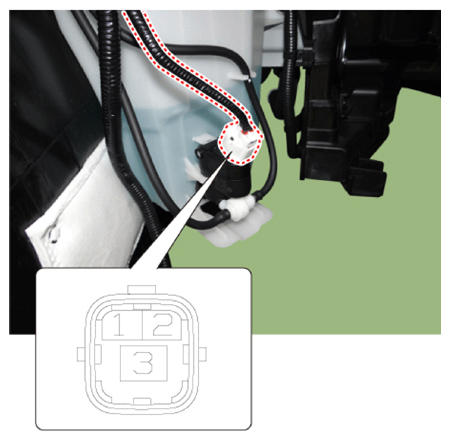

- Connect positive (+) battery cables to power terminal (Front: 2, Rear 3) and negative (-) battery cables to ground terminal 1 respectively.
Pin Function 1 Ground 2 Front washer (+) 3 Rear washer (+) - Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
- If they are abnormal, replace the washer motor.
