Repair Procedures: Removal

Disconnect the negative battery terminal.

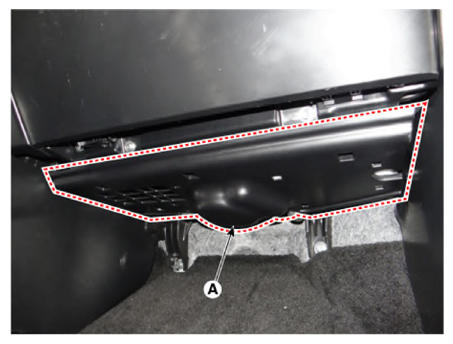

Remove the crash pad under cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the glove box.
(Refer to Body - "GLOVE BOX ")

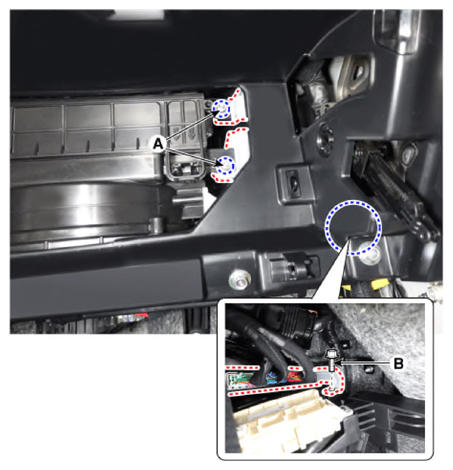

Loosen the IBU mounting nuts (A) and bolt (B).
Tightening torque:

9.6 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

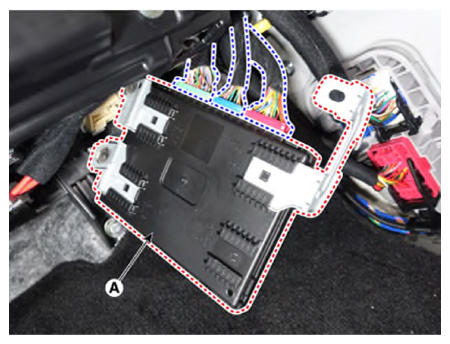

Disconnect the connectors from the IBU (A).

G13312166

Courtesy of KIA MOTORS AMERICA, INC.
