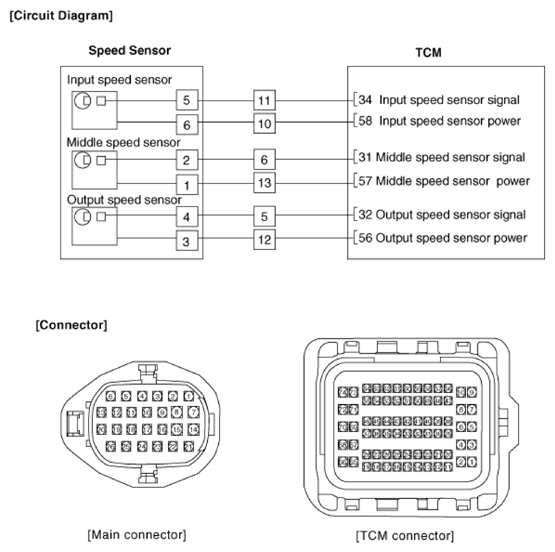

Home >> Kia >> 2021 >> Telluride EX, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Speed Sensor >> Schematic Diagrams >> Circuit Diagram
