Description & Operation: Description

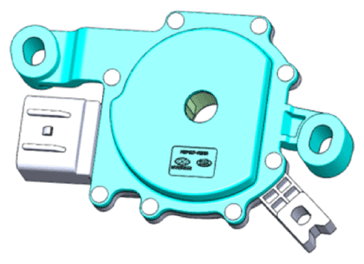

The position switch is installed on top of transaxle, and is connected to the shift lever by a shift cable.
Position switch signals are transmitted to the TCM according to the driver's shift lever control.
