Repair Procedures: Disassembly

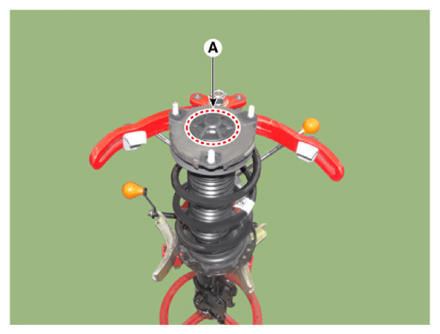

Remove the insulator dust cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

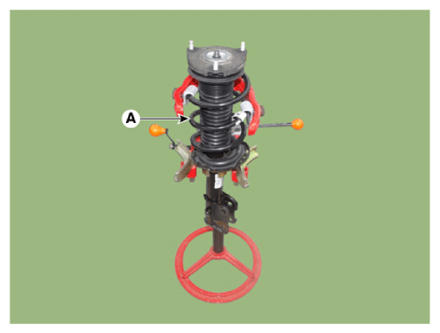

Using the spring compressor, compress the coil spring (A).
Do not compress the spring more than necessary.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.
- To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
Courtesy of KIA MOTORS AMERICA, INC.

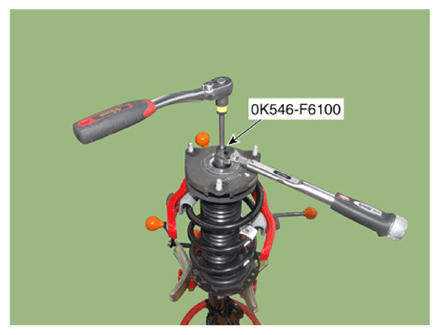

Using SST (0K546-F6100), loosen the self locking nut.

Courtesy of KIA MOTORS AMERICA, INC.

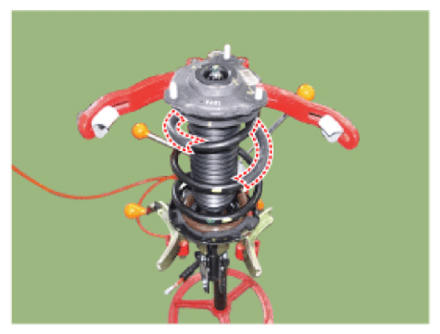

Remove the insulator, spring pad, coil spring and dust cover from the strut assembly.
