Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the rear axle assembly.

    (Refer to Driveshaft and axle (4WD Control) - "REAR AXLE ASSEMBLY ")

  2. Using a pry bar (A), separate the rear drive shafts (B) from the differential carrier.

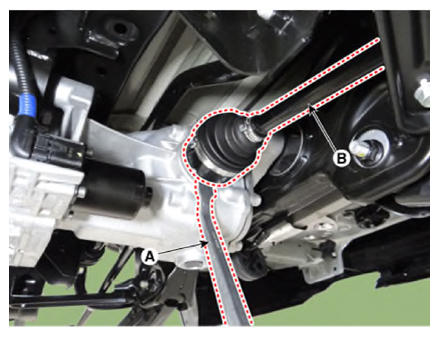

    [LH]

    G13310692Courtesy of KIA MOTORS AMERICA, INC.

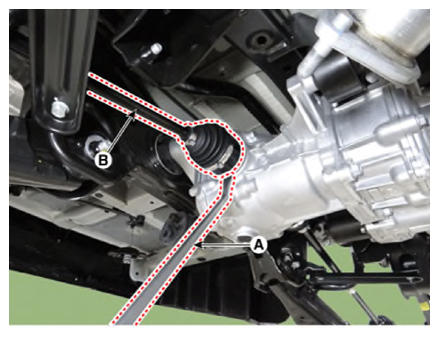

    [RH]

    G13310693Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Use a pry bar being careful not to damage the transmission and joint.
    • Do not insert the pry bar too deep, as this may cause damage to the oil seal.
    • Do not pull the drive shaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
    • Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
    • Support the driveshaft properly.
      • Be careful that the drive shaft is not bent or drop down by other component's weight (such as axle etc.)
    • Replace the retainer ring whenever the driveshaft is removed from the transaxle case.
  3. Remove the rear drive shafts (A).

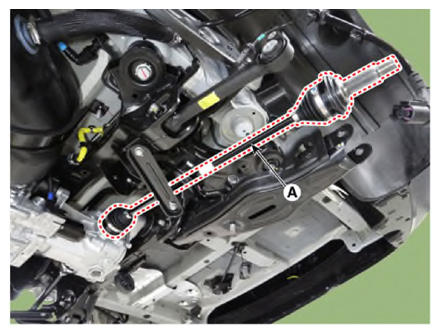

    [LH]

    G13310694Courtesy of KIA MOTORS AMERICA, INC.

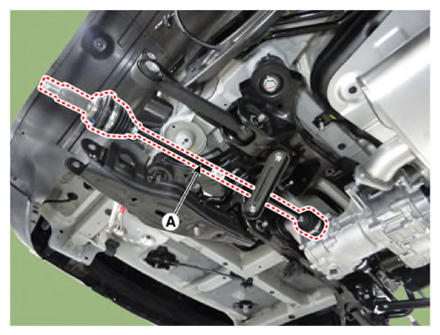

    [RH]

    G13310695Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
  5. Check the rear alignment.

    (Refer to REAR WHEEL ALIGNMENT
