Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ".)

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

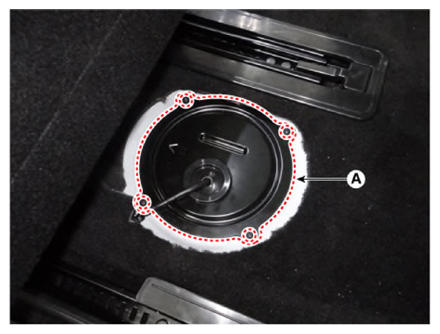

  3. Remove the fuel pump service cover (A).
    G13310140Courtesy of KIA MOTORS AMERICA, INC.

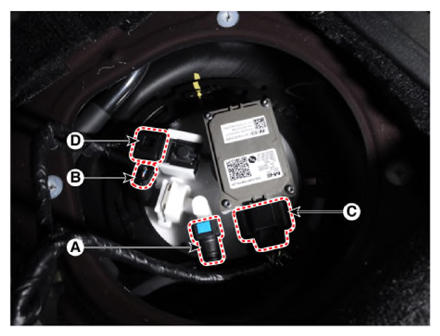

  4. Disconnect the fuel feed tube quick-connector (A), fuel pressure sensor connector (B) and fuel pump control module connector (C), fuel tank pressure sensor connector (D).
    G13310141Courtesy of KIA MOTORS AMERICA, INC.

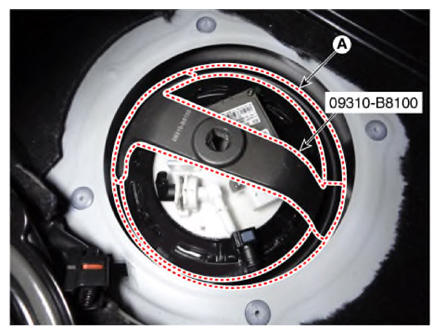

  5. Remove the fuel pump plate cover (A) by using the special service tool (09310-B8100).
    G13310142Courtesy of KIA MOTORS AMERICA, INC.

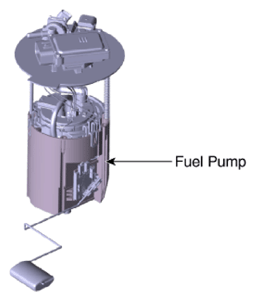

  6. Remove the fuel pump from the fuel tank.
    G13310143Courtesy of KIA MOTORS AMERICA, INC.
