Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

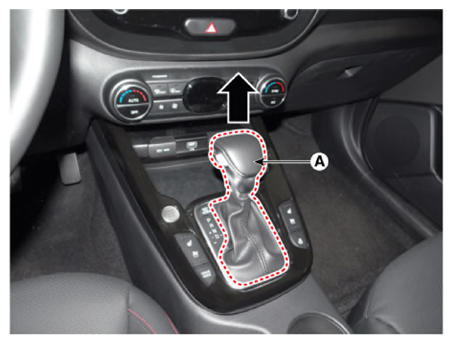

  2. Remove the knob (A) by pulling it in the direction of the arrow after separating the boots from the console upper cover.
    G13312043Courtesy of KIA MOTORS AMERICA, INC.

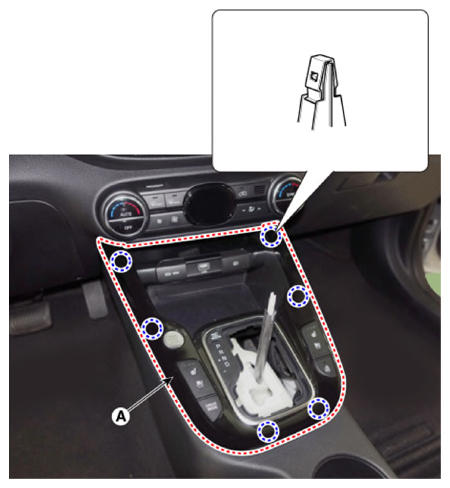

  3. Remove the console upper cover (A).
    G13312044Courtesy of KIA MOTORS AMERICA, INC.

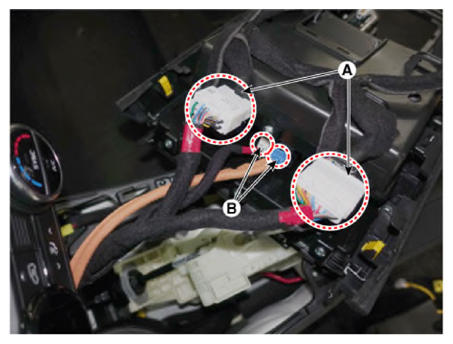

  4. Disconnect the extension connector (A) and multimedia jack connectors (B).
    G13312045Courtesy of KIA MOTORS AMERICA, INC.

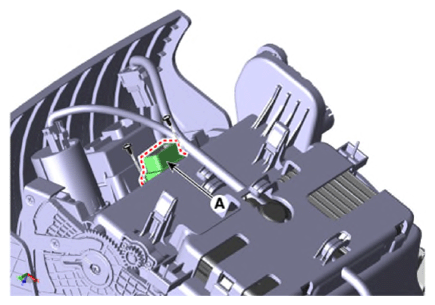

  5. Remove the wireless charging indicator (A) by loosening the screws after disconnecting the connector.
G13312046Courtesy of KIA MOTORS AMERICA, INC.
