Circuit Diagram

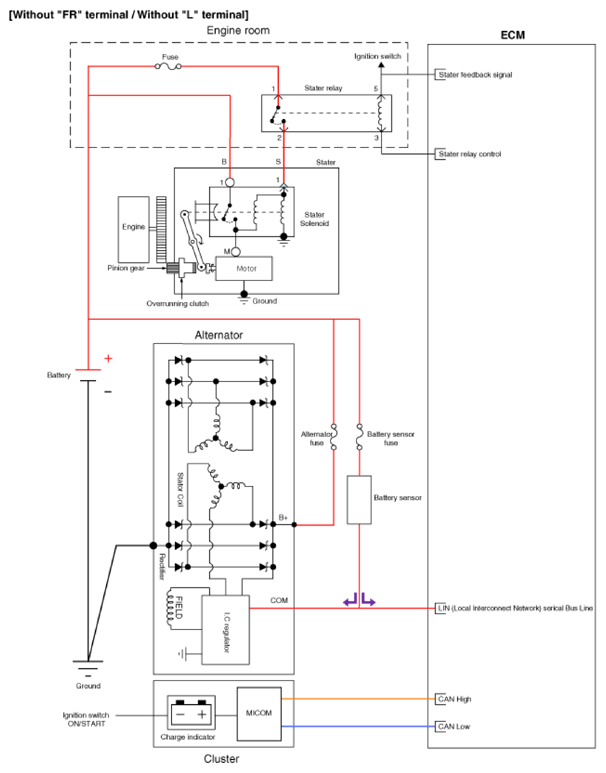

G13309818

Courtesy of KIA MOTORS AMERICA, INC.

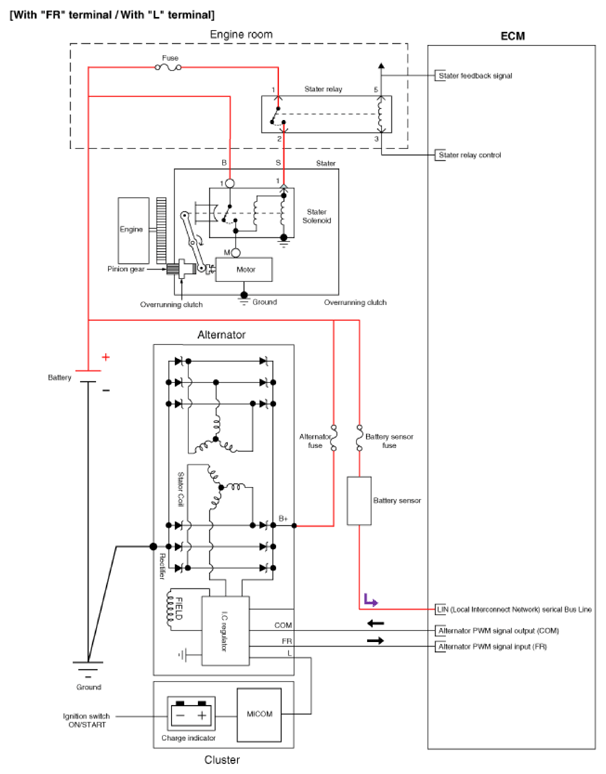

G13309819

Courtesy of KIA MOTORS AMERICA, INC.
