Repair Procedures: Removal

WARNING:
  • Before starting repair work, turn off the engine and AC inverter.
  • Working on AC inverter while it's turned on may cause electric shock.
  • Working on AC inverter with wet hands may cause electric shock.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim [RH].

    (Refer to Body - "LUGGAGE SIDE TRIM ")

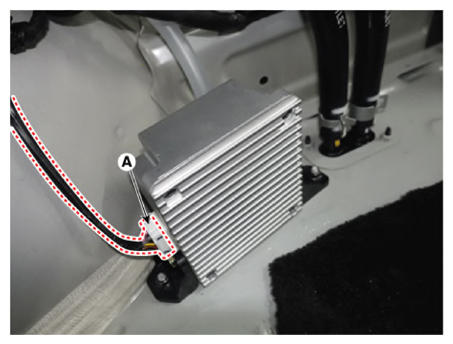

  3. Disconnect the AC inverter unit connector (A).
    G13311892Courtesy of KIA MOTORS AMERICA, INC.

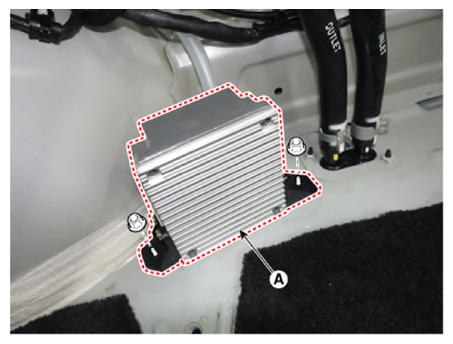

  4. Remove the AC inverter unit (A) by loosening the mounting nuts.
G13311893Courtesy of KIA MOTORS AMERICA, INC.
