Home >> Kia >> 2021 >> Telluride EX, FWD >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Front Driveshaft Assembly >> BJ Boot >> Components & Components Location >> Components

Components & Components Location: Components

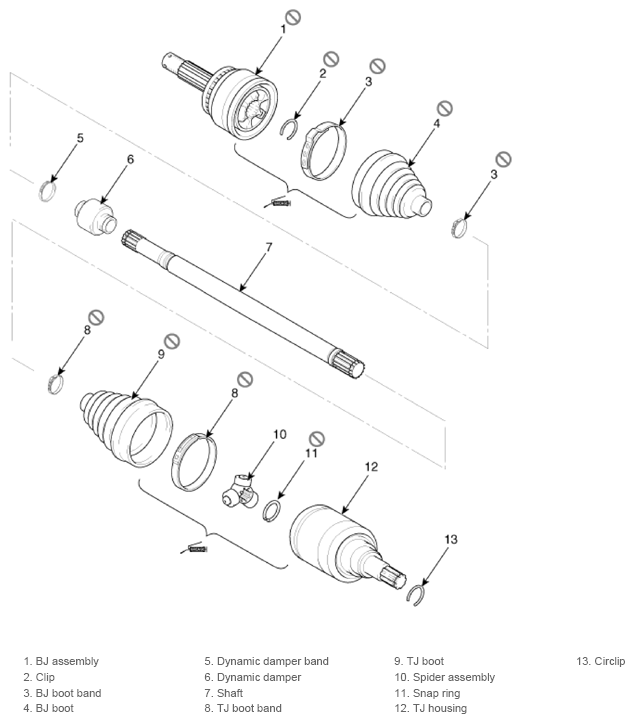

[RH]

G13310671

Courtesy of KIA MOTORS AMERICA, INC.

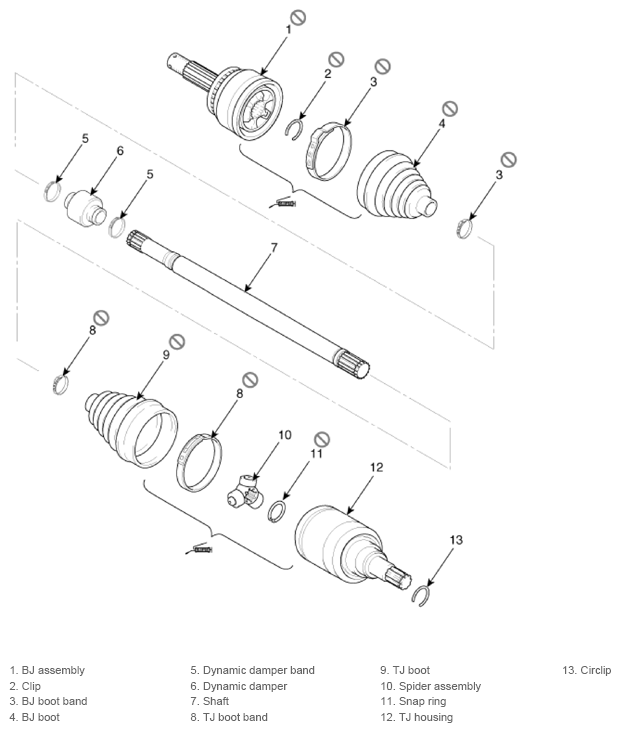

[LH]

G13310672

Courtesy of KIA MOTORS AMERICA, INC.
