Removal and Installation

Disconnect the battery negative terminal.
Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

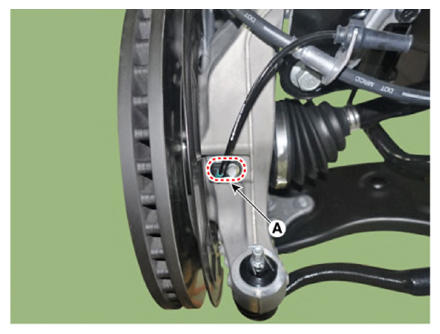

Disconnect the front wheel speed sensor (A).
Tightening torque:

8.8 - 13.8 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

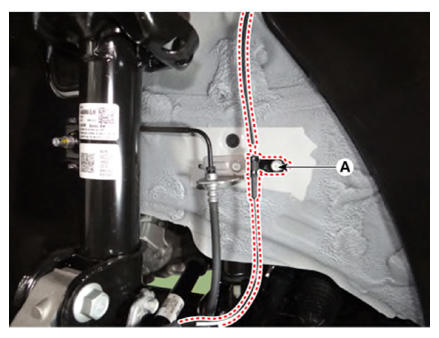

Disconnect the front wheel speed sensor wiring bracket (A) by loosening the bolt.
Tightening torque:

8.8 - 13.8 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

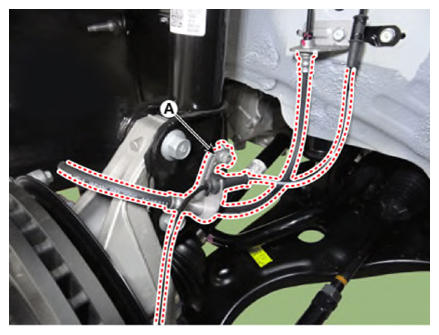

Disconnect the front wheel speed sensor bracket (A) by loosening the bolt.
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")
Disconnect the connector (A) and then remove the front wheel speed sensor.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
