Seat Back Walk-in Switch

CAUTION: Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the second row seat assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

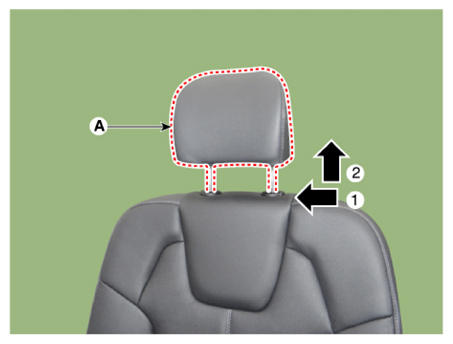

  2. Push the lock pin (B), remove the rear seat headrest (A).
    G13312485Courtesy of KIA MOTORS AMERICA, INC.

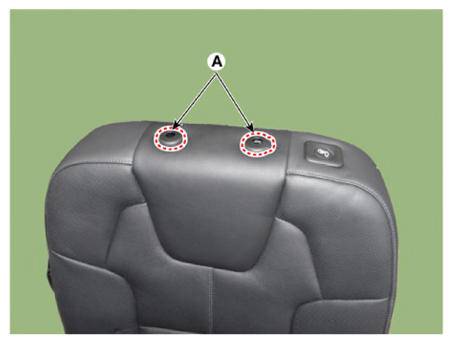

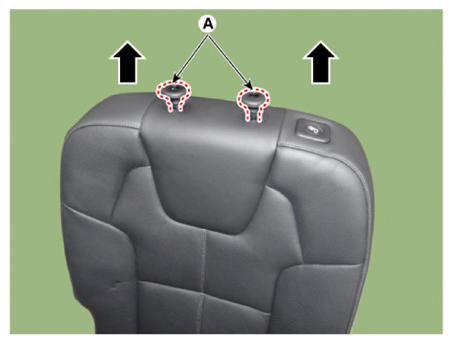

  3. Using a screwdriver or remover, remove the rear seat headrest guides (A).
    G13312486Courtesy of KIA MOTORS AMERICA, INC.
    G13312487Courtesy of KIA MOTORS AMERICA, INC.

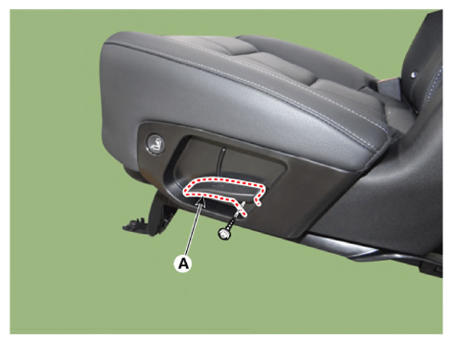

  4. Loosen the mounting screw and remove the second row seat recliner knob (A).
    G13312488Courtesy of KIA MOTORS AMERICA, INC.

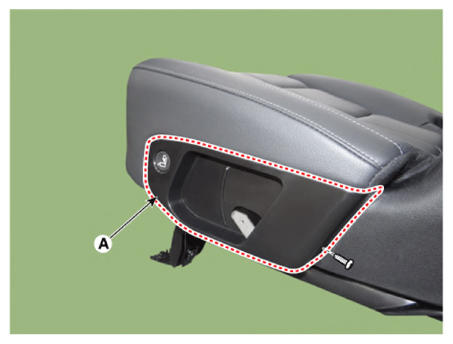

  5. Loosen the mounting screw and remove the second row seat cushion lever garnish (A).
    G13312489Courtesy of KIA MOTORS AMERICA, INC.

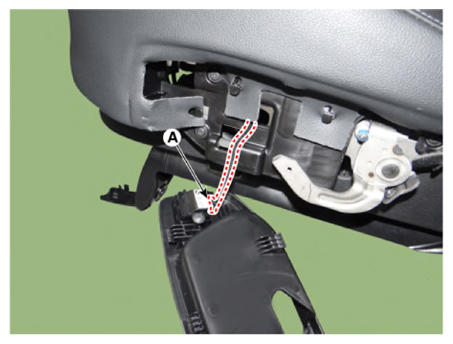

  6. Press the lock pin and separate the connector (A).
    G13312490Courtesy of KIA MOTORS AMERICA, INC.

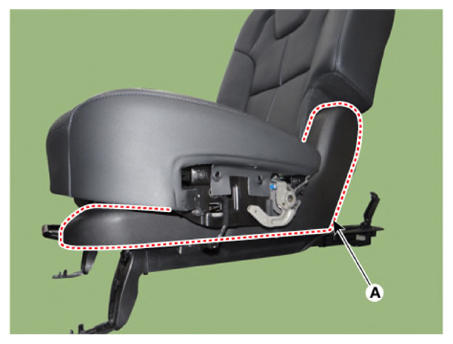

  7. Using a screwdriver or remover and remove the second row seat cushion shield outer cover (A).
    G13312491Courtesy of KIA MOTORS AMERICA, INC.

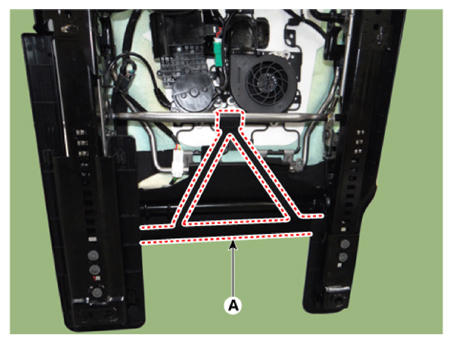

  8. Remove the rear seat lower protector (A).
    G13312492Courtesy of KIA MOTORS AMERICA, INC.

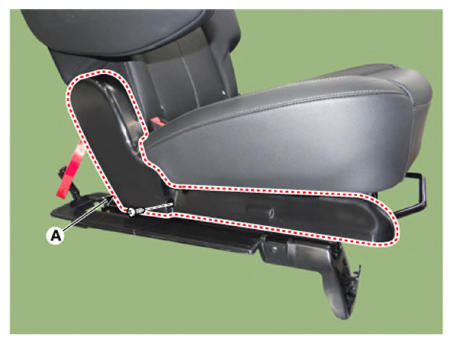

  9. Loosen the mounting screw and remove the second row seat cushion shield inner cover (A).
    G13312493Courtesy of KIA MOTORS AMERICA, INC.

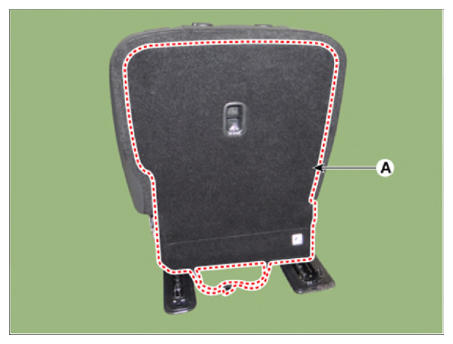

  10. Using a screwdriver or remover, remove the rear seat back cover (A).
    G13312494Courtesy of KIA MOTORS AMERICA, INC.

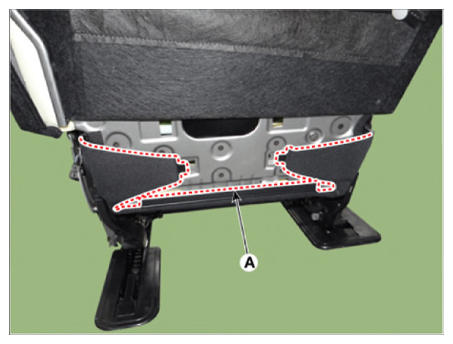

  11. After removing the clips and remove the rear seat back lower protector (A).
    G13312495Courtesy of KIA MOTORS AMERICA, INC.
    G13312496Courtesy of KIA MOTORS AMERICA, INC.

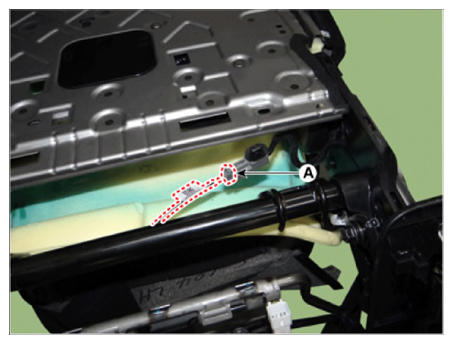

  12. Press the lock pin and separate the heater connector (A).
    G13312497Courtesy of KIA MOTORS AMERICA, INC.

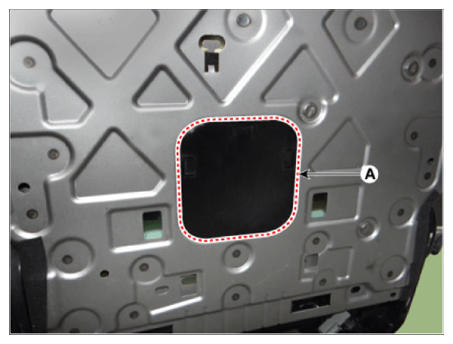

  13. Using a screwdriver or remover and remove the rear seat back frame cover (A).
    G13312498Courtesy of KIA MOTORS AMERICA, INC.

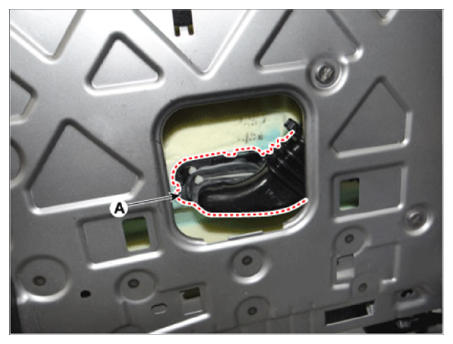

  14. Remove the rear seat back duct (A).
    G13312499Courtesy of KIA MOTORS AMERICA, INC.

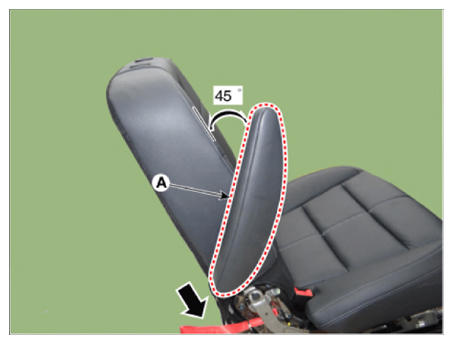

  15. Remove the second row seat armrest (A).
    G13312500Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Remove the second row seat armrest in the direction of the arrow using a lever at a 45 ° angle.

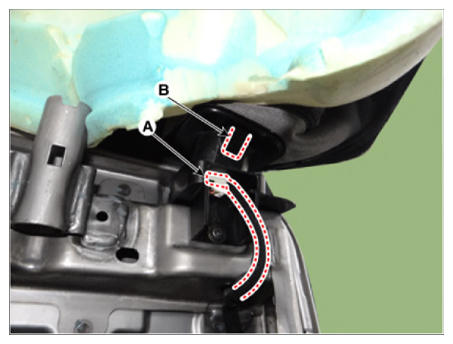

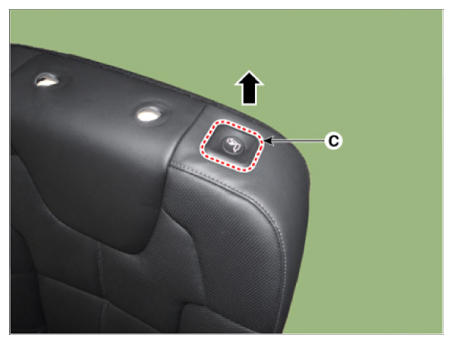

  16. After disconnecting the connector (A) by turning the second row seatback cover over, remove the folding switch (C) upward by releasing the hook (B).
G13312501Courtesy of KIA MOTORS AMERICA, INC.
G13312502Courtesy of KIA MOTORS AMERICA, INC.
