Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat shield outer cover.

    (Refer to Body - "FRONT SEAT SHIELD OUTER COVER ")

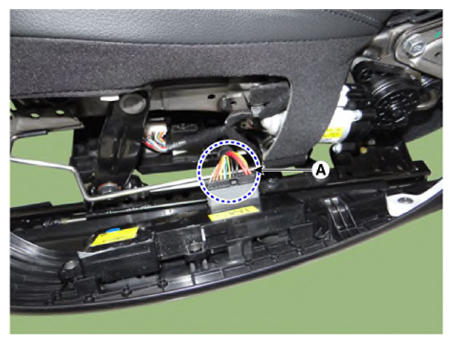

  3. Disconnect the connector (A) from the power seat control switch.
    G13312470Courtesy of KIA MOTORS AMERICA, INC.

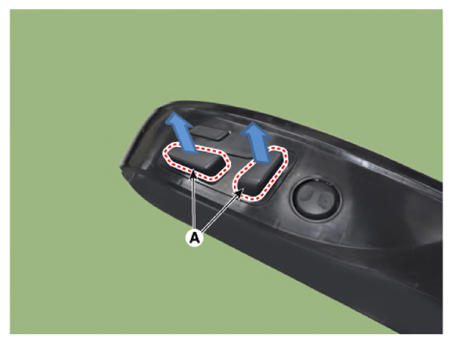

  4. Remove the knob (A) from the power seat control switch.
    G13312471Courtesy of KIA MOTORS AMERICA, INC.

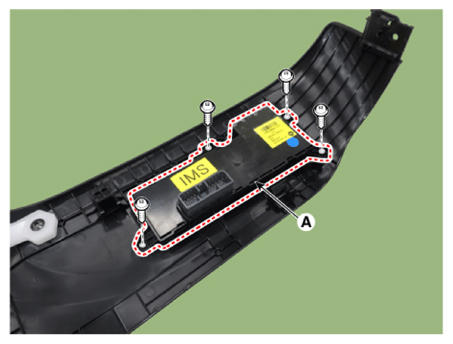

  5. Remove the power seat control switch (A) after loosening the screws.
G13312472Courtesy of KIA MOTORS AMERICA, INC.
