Repair Procedures: Removal

  1. Remove the side airbag.

    (Refer to Restraint - "SIDE AIRBAG MODULE ")

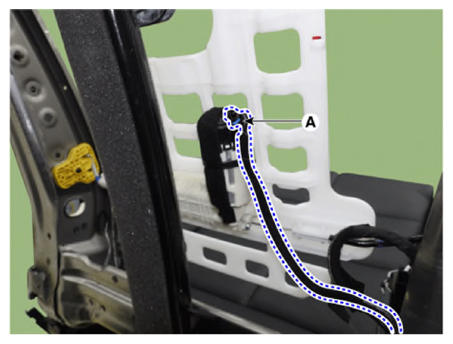

  2. Disconnect the connector (A) from the lumbar support motor.
    G13312464Courtesy of KIA MOTORS AMERICA, INC.

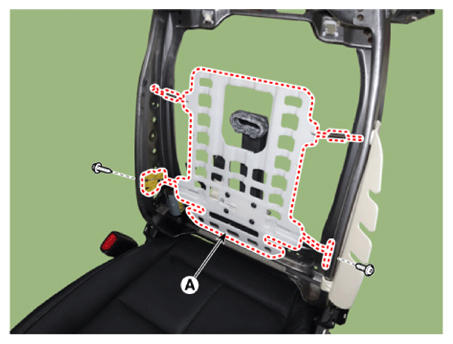

  3. Remove the lumbar support (A) after loosening the screws.
G13312465Courtesy of KIA MOTORS AMERICA, INC.
